Description

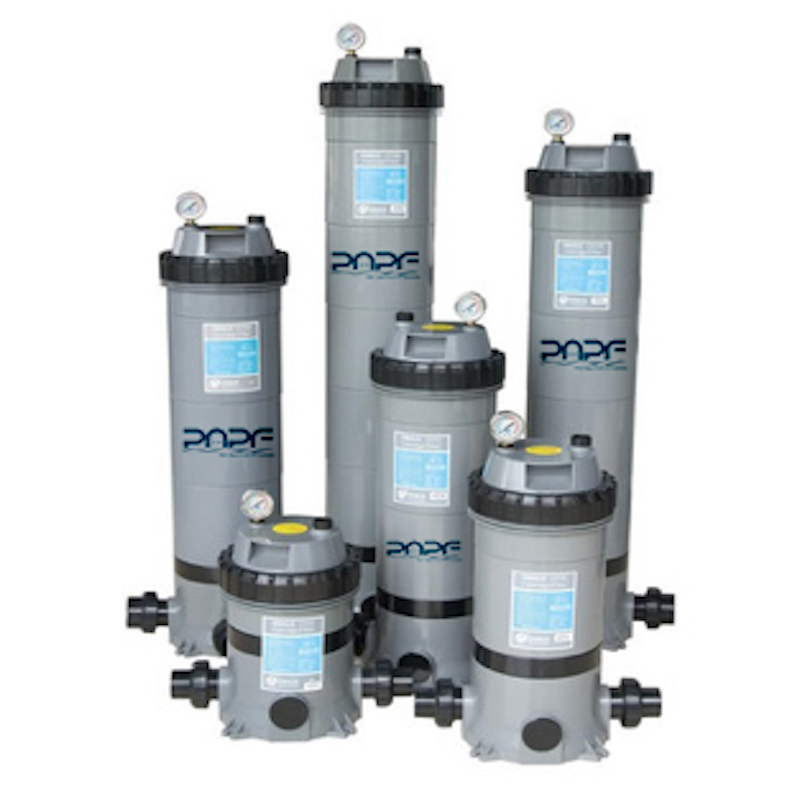

Purifio Cartridge Filters
- Compact and light weight
- UV resistant tank
- Heavy duty ring—lock lid allows easy cleaning and replacement of the cartridge element
- Screw type air bleeder for easy removal of trapped air inside the filter tank
- High quality oil filled pressure gauge for easy inspection of the operation pressure
- Application to Domestic/Light Commercial swimming pool and spa
Model Filter Area Valve Connections Max. Flow Rate A B C (m2) (mm) (lpm) (m3/Hr.) (mm) (mm) (mm) PACF634025 2.25 1.5” 50mm 92 5.5 445 387 225 PACF634050 4.63 1.5” 50mm 190 11.4 625 567 225 PACF634075 7.0 1.5” 50mm 283 17.0 805 747 225 PACF634100 9.40 2.0” 63mm 382 22.9 985 927 225 PACF634150 13.72 2.0” 63mm 555 33.4 1165 1107 225 PACF634200 16.82 2.0” 63mm 680 40.9 1345 1287 225
| Model | Filter Area | Valve Connections | Max. Flow Rate | A | B | C | ||
| (m2) | (mm) | (lpm) | (m3/Hr.) | (mm) | (mm) | (mm) | ||
| PACFO635025 | 2.25 | 1.5” | 50mm | 92 | 5.5 | 411 | 400 | 225 |
| PACFO635050 | 4.63 | 1.5” | 50mm | 190 | 11.4 | 591 | 580 | 225 |
| PACFO635075 | 7.0 | 1.5” | 50mm | 283 | 17.0 | 771 | 760 | 225 |
| PACFO635100 | 9.40 | 2.0” | 63mm | 382 | 22.9 | 951 | 940 | 225 |
| PACFO635150 | 13.72 | 2.0” | 63mm | 555 | 33.4 | 1131 | 1120 | 225 |
| PACFO635200 | 16.82 | 2.0” | 63mm | 680 | 40.9 | 1311 | 1300 | 225 |
